Electronic Engine Controls - 2.0L ECOBOOST
>>
Description And Operation
>>
Electronic Engine Controls - Component Location
>>

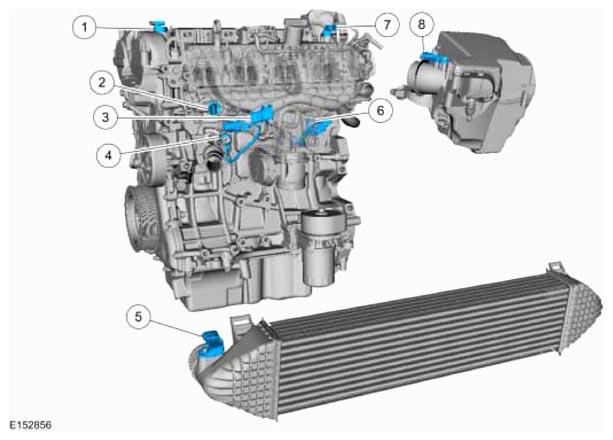

LH Engine
LH Engine
Item
Description
1
Intake
VCT
oil control solenoid
2
FRP
sensor
3
MAP
sensor
4
Front
KS
5
Turbocharger boost pressure and charge air temperature sensor
6
Rear
KS
7
Intake
CMP
sensor
8
MAF
sensor
