Cooling Module: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

    Refer to: ENGINE COOLING SYSTEM HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
  3. Refer to: AIR CLEANER .
  4. G08063643
  5. G08063736
  6. G08063755
  7. Install new gaskets and O-ring seals.

    Torque  : 133 lb.in (15 Nm)

    G08063756
  8. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

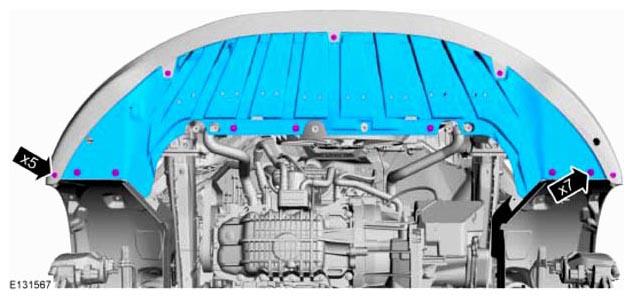

  9. G08100214
  10. G08063737
  11. Torque  : 44 lb.in (5 Nm)
    G08063758
  12. G08063759

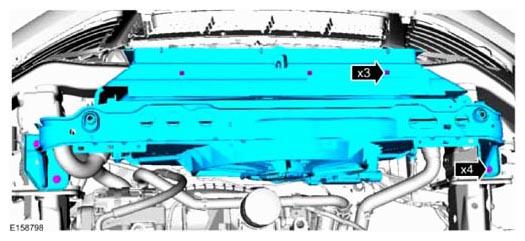

  13. G08056267
    • This procedure step requires the specified number of technicians.
    • If equipped a new rivet nut must be installed during installation.
    • Torque  : 18 lb.ft (25 Nm)
      G08063678
