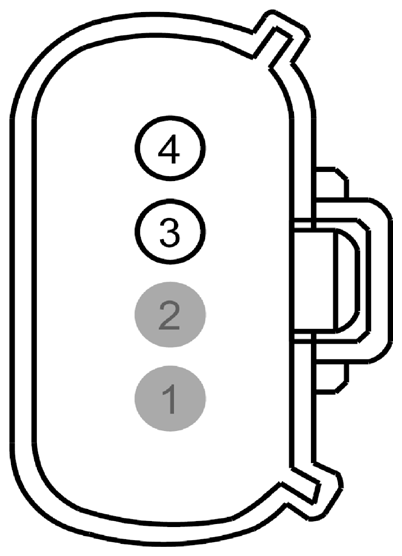

Liftgate Release Switch Connector End View (C4353)

Fig 1: Identifying Liftgate Release Switch Connector (C4353)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	CPL45 (BN)	20	SWITCH - LIFTGATE/DECKLID RELEASE
4	GD349 (BK-GY)	20	GROUND - PILLAR D LEFT (BC3T)
