Selector Lever Assembly: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: FLOOR CONSOLE .
  2. NOTE: Gearshift cables must not be kinked or bent.

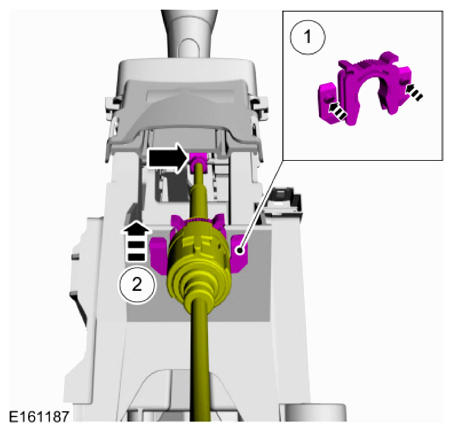

    G09551710

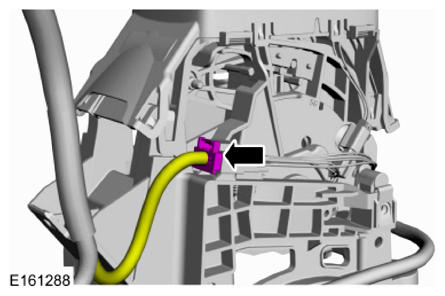

  3. G09551711
  4. Torque:  80 lb.in (9 Nm)

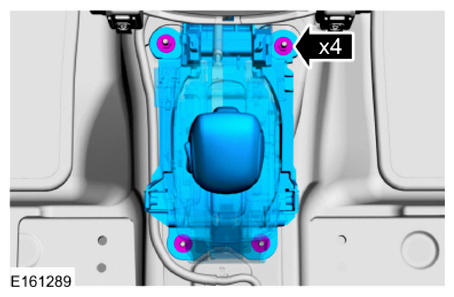

    G09551712
