Key In Ignition Switch Connector End View (C2112)

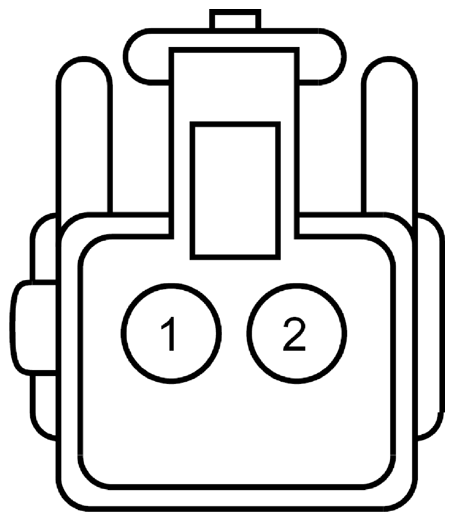

Fig 1: Identifying Key In Ignition Switch Connector (C2112)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CDC30 (BU-GY)	22	SWITCH - IGNITION # KEY IN
2	GD115 (BK-GY)	20	GROUND - CROSS CAR BEAM # 2ND POINT (OBSOLETE)
