Intrusion Sensor Connector End View (C9800)

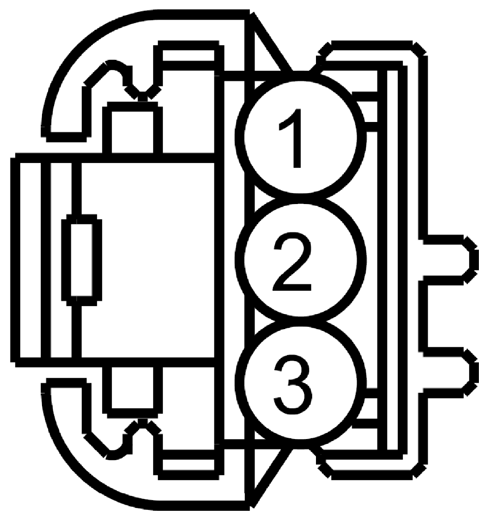

Fig 1: Identifying Intrusion Sensor Connector (C9800)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD143 (BK-VT)	22	GROUND - PILLAR B LEFT (OBSOLETE)
2	VRT26 (VT)	20	CTRL MOD. - INTERIOR SCAN SENSOR LIN BUS
3	SBP07 (WH-RD)	22	FUSE - 7 OR CIRCUIT BREAKER

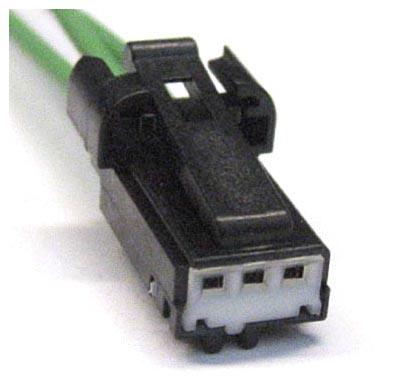

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
