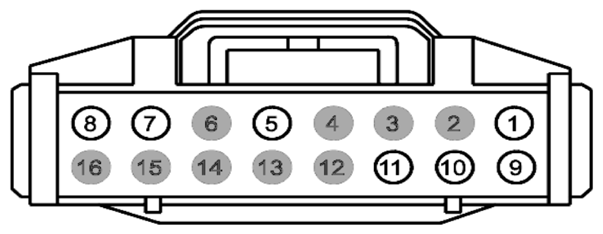

| 1 |
CRH03 (BN) |
20 |
CTRL MOD. - STEERING WHEEL # HORN |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
RME54 (WH-VT) |
20 |
GROUND - CROSS CAR BEAM # 2ND STUD |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
CLN04 (BU-BN) |
20 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
| 8 |
VES10 (WH) |
20 |
SWITCH - SPEED CONTROL COMMAND (SCCS) |
|
| 9 |
RES08 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # SPEED CONTROL COMMAND RETURN (SCCSRTN) |
|
| 10 |
VME14 (GY-YE) |
20 |
CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO |
|
| 11 |
RME24 (BU-WH) |
20 |
SWITCH - REDUNDANT AUDIO |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
