Battery Monitoring Sensor Connector End View (C1646)

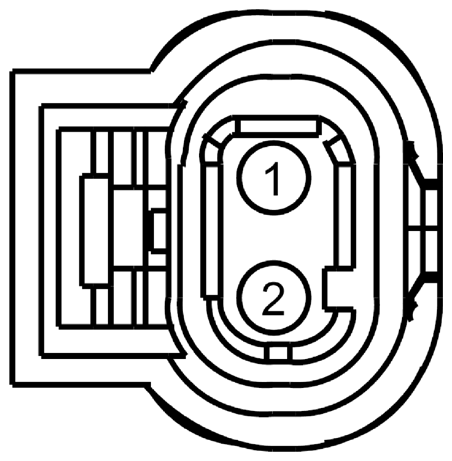

Fig 1: Identifying Battery Monitoring Sensor Connector (C1646)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDC60 (YE-VT)	18	SENSOR - BATTERY MONITORING SYSTEM # BATTERY
2	CDC15 (VT)	18	GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI)
