Mode Select Switch (MSS)

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

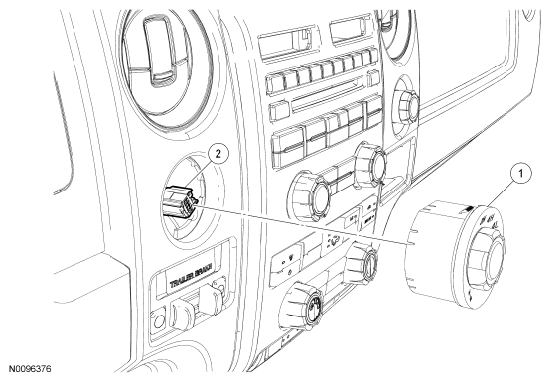

Fig 1: Identifying Mode Select Switch And Connector
G06171708Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14B166 Mode Select Switch (MSS)
2 - MSS  electrical connector (part of 14401)
  1. Carefully pry the Mode Select Switch (MSS) from the instrument panel.
  2. Disconnect the MSS  harness connector and remove the switch.
  3. To install, reverse the removal procedure.
