Module Communications Network: Notes

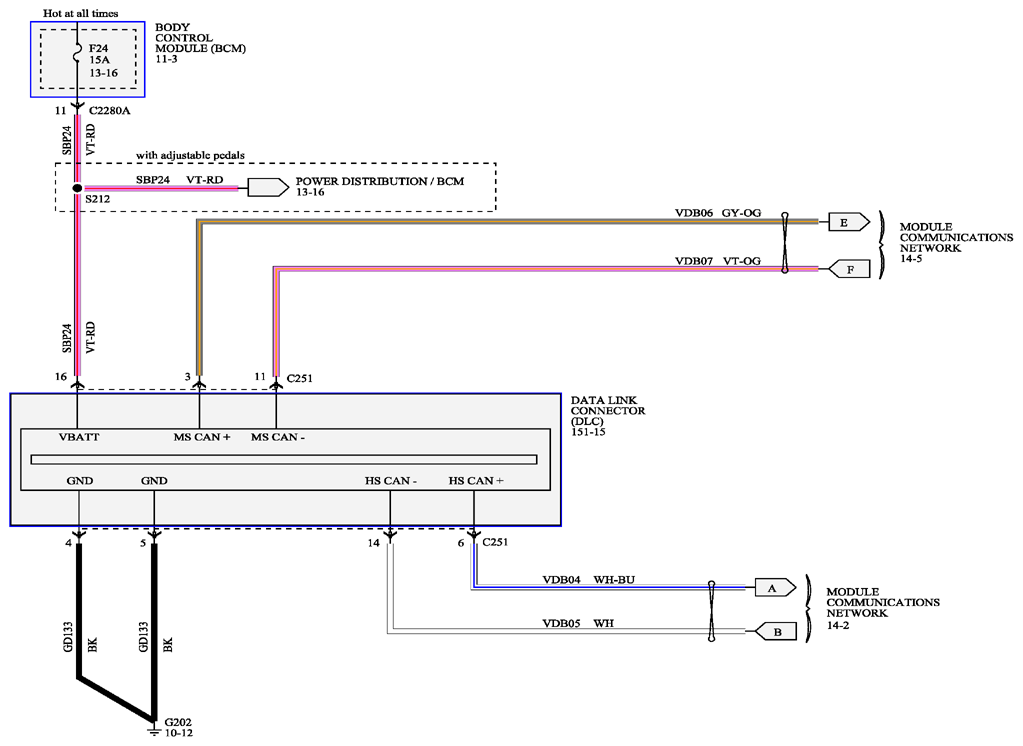

Fig 1: Module Communications Network - Wiring Diagram (1 Of 4)
G09257479Courtesy of FORD MOTOR CO.

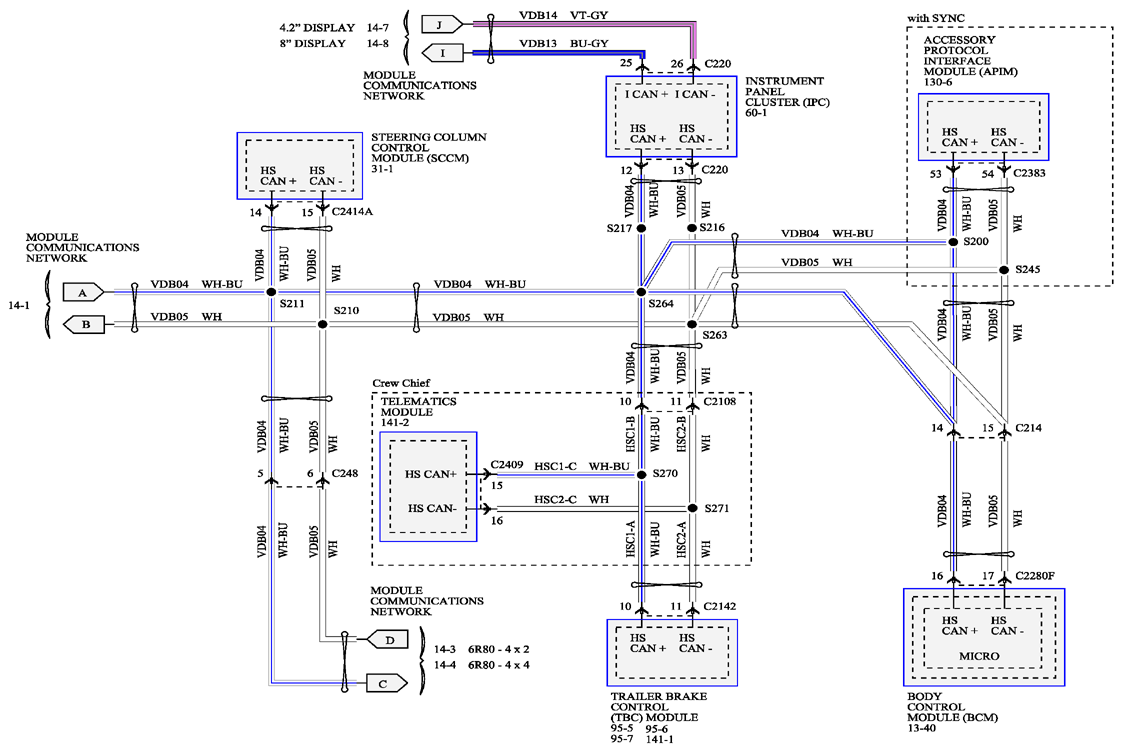

Fig 2: Module Communications Network - Wiring Diagram (2 Of 4)
G09257480Courtesy of FORD MOTOR CO.

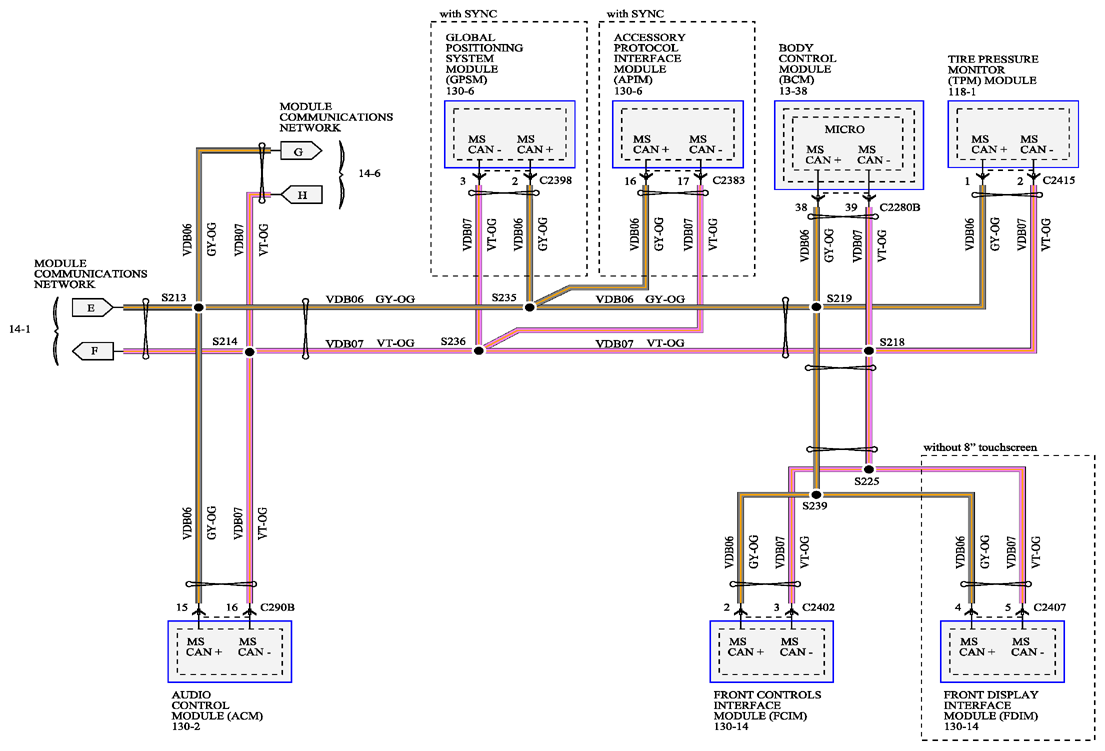

Fig 3: Module Communications Network - Wiring Diagram (3 Of 4)
G09257483Courtesy of FORD MOTOR CO.

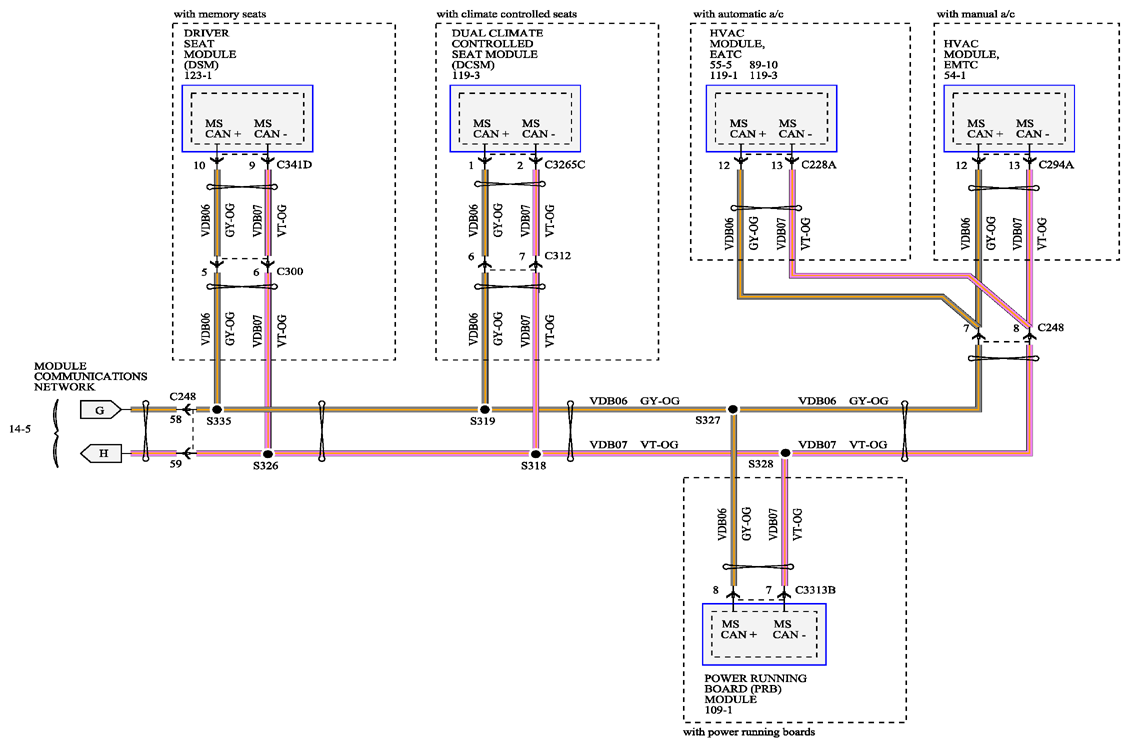

Fig 4: Module Communications Network - Wiring Diagram (4 Of 4)
G09257484Courtesy of FORD MOTOR CO.
