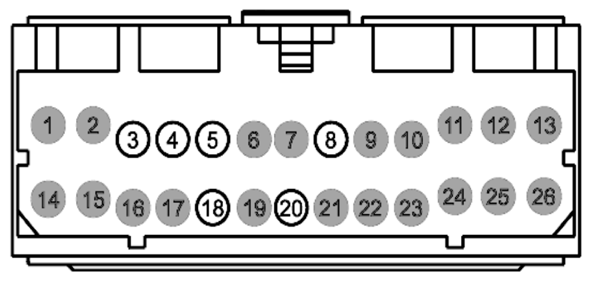

Driver Seat Module (DSM) Connector End View (C341A)

Fig 1: Identifying Driver Seat Module Connector (C341A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	VPS12 (GY-OG)	20	SENSOR - DRIVER SEAT RECLINE
4	VPS10 (BU-GN)	20	SENSOR - DRIVER SEAT HEIGHT FRONT/TILT
5	VPS11 (GN-BN)	20	SENSOR - DRIVER SEAT HEIGHT REAR/PARALLEL
6	*	*	Not Used
7	*	*	Not Used
8	VPS09 (BN-BU)	20	SENSOR - DRIVER SEAT SLIDE FORWARD/REARWARD
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	RPS12 (YE-VT)	20	CTRL MOD. - DRIVER SEAT SENSORS RECLINE -
19	*	*	Not Used
20	RPS13 (GN-OG)	20	CTRL MOD. - DRIVER SEAT SENSORS CUSHION -
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
24	*	*	Not Used
25	*	*	Not Used
26	*	*	Not Used
