Removal and Installation

WARNING: This page is about a different car, the 2013 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Prior to replacement of the module, it is necessary to upload the module configuration information to the appropriate scan tool. This information must be downloaded into the new module after installation. MODULE CONFIGURATION .

NOTE: This step is necessary only if the GPSM is being replaced. Upload the module configuration information from the GPSM into the scan tool. For additional information, refer to MODULE CONFIGURATION .
Remove the Instrument Panel Cluster (IPC). Refer to INSTRUMENTATION, MESSAGE CENTER, AND WARNING CHIMES .

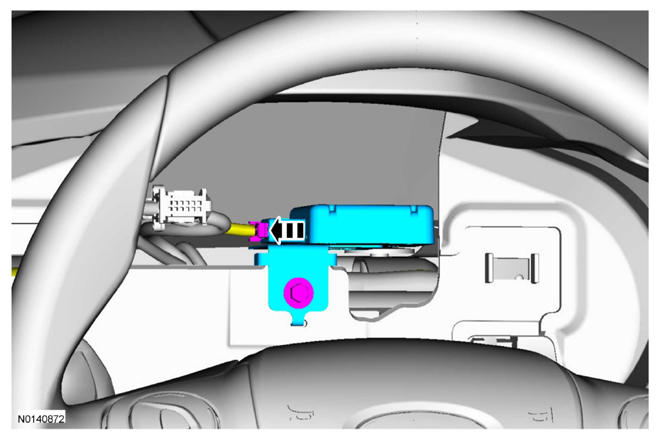

Remove the bolt and the Global Positioning System Module (GPSM).
- Disconnect the electrical connector.
- To install, tighten to 2 Nm (18 lb-in).
NOTE: If installing a new GPSM, make sure to download the GPSM configuration information from the scan tool into the new GPSM. For additional information, refer to MODULE CONFIGURATION .

To install, reverse the removal procedure.
