Removal And Installation: Generator: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

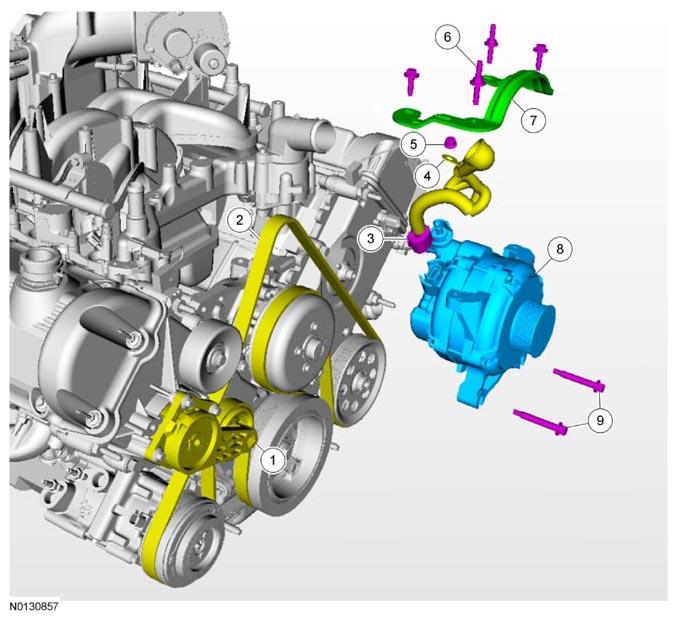

NOTE: 5.4L with A/C shown, other engines similar.

Item	Part Number	Description
1	6B209	Accessory drive belt tensioner
2	8620	Accessory drive belt
3	-	Generator electrical connector (part of 14305)
4	-	Generator B+ terminal (part of 14305)
5	W711953	Generator B+ terminal nut - 17 Nm (150 lb-in)
6	N807309	Generator bracket bolt (4 required) - 10 Nm (89 lb-in)
7	10153	Generator bracket
8	10300	Generator
9	N811334	Generator bolt (2 required) - 25 Nm (18 lb-ft)
