Wheel Speed Sensor, Left Front Connector End View (C150)

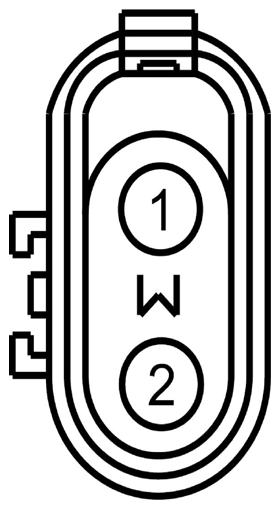

Fig 1: Identifying Wheel Speed Sensor, Left Front Connector (C150)
G09083785Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 9-CF32 (BN) 20 LEFT FRONT~WHEEL ~SENSOR, SIGNAL RETURN (REFERENCE/GROUND)
2 8-CF32 (WH) 20 LEFT FRONT~WHEEL ~SENSOR, SIGNAL 1
