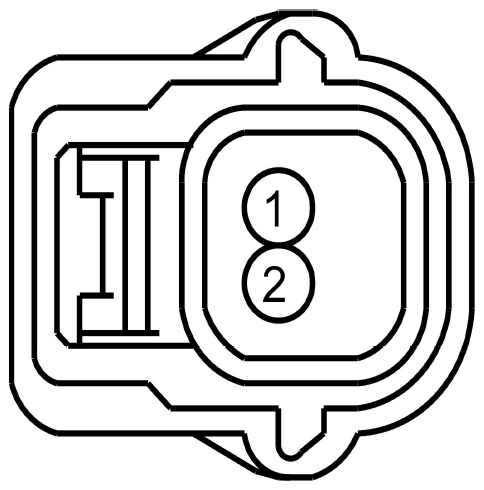

Side Impact Sensor, Driver Connector End View (C3209)

Fig 1: Identifying Side Impact Sensor, Driver Connector (C3209)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	15-JA39 (BN-YE)	20	DRIVER~SIDE-AIR BAG ~SENSOR, SWITCHED BATTERY VOLTAGE, NOT OVERLOAD PROTECTED HOT ONLY IN START AND RUN
2	91-JA39 (WH-BK)	20	DRIVER~SIDE-AIR BAG ~SENSOR, GROUND

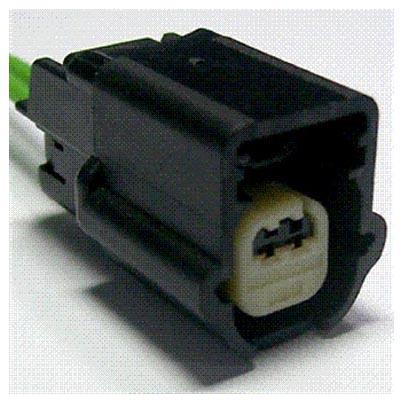

Available Pigtail Kits
Pigtail Kit Part Number WPT-1070	Service Part Number: AU2Z-14S411-NA  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment)
