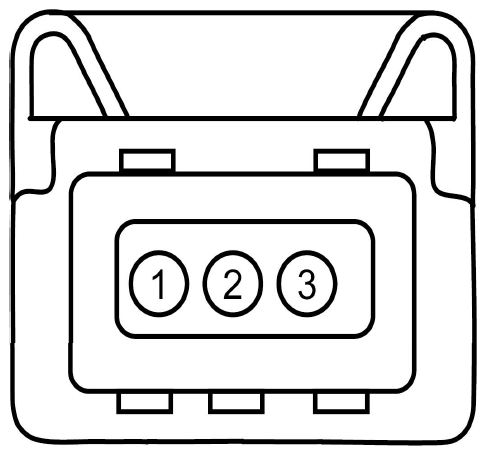

Brake Fluid Level Switch Connector End View (C124)

Fig 1: Identifying Brake Fluid Level Switch Connector (C124)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	31S-GE44 (BK-RD)	18	PARKING~BRAKE ~SWITCH, SWITCHED GROUND POWER RETURN
2	31S-GC6 (BK-YE)	18	BRAKE~FLUID~LEVEL ~INDICATOR, SWITCHED GROUND POWER RETURN
3	91-GC7 (BK-BU)	20	BRAKE~FLUID~LEVEL ~SWITCH, GROUND

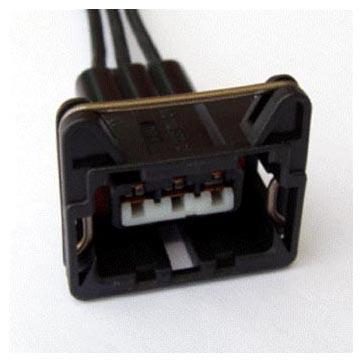

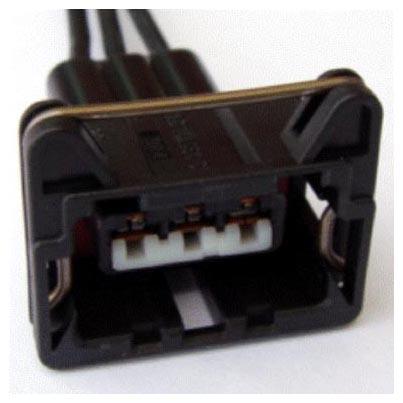

Available Pigtail Kits
Pigtail Kit Part Number WPT-477	Service Part Number: 3U2Z-14S411-NVA  Gauge: 14 16  Pin material: Tin & Silver  Cavities: 3  Vehicle Uses Sensor - Brake Fluid Level
Pigtail Kit Part Number WPT-4771	Service Part Number: 3U2Z-14S411-NVB  Gauge: 16  Pin material: Tin  Cavities: 3  Vehicle Uses Switch - Gear Shift Select/Neutral Safety
