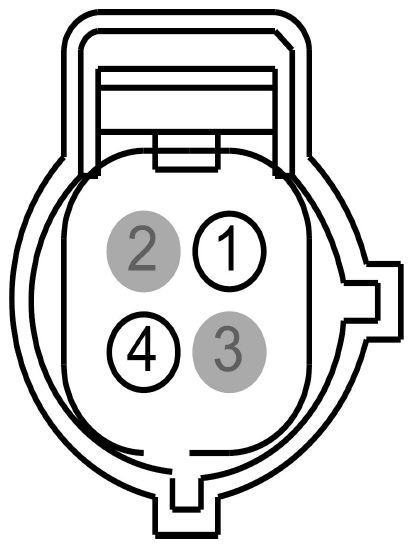

A/C Compressor Cycling Switch Connector End View (C1081)

Fig 1: Identifying A/C Compressor Cycling Switch Connector (C1081)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	7-FA11 (YE)	18	A/C~WIDE OPEN THROTTLE~WOT ~RELAY, CONSTANT D.C. VOLTAGE OTHER THAN BATTERY
2	*	*	Not Used
3	*	*	Not Used
4	91-FA11 (BK-YE)	18	A/C~WIDE OPEN THROTTLE~WOT ~RELAY, GROUND

Available Pigtail Kits

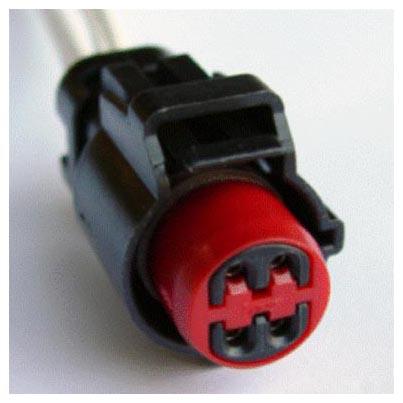

Pigtail Kit Part Number WPT-808	Service Part Number: 3U2Z-14S411-EZAA  Gauge: 14  Pin material: Gold  Cavities: 4  Vehicle Uses Sensor - Ambient Temp Sensor - Mass Air Flow Sensor - Memory Seat Track Position

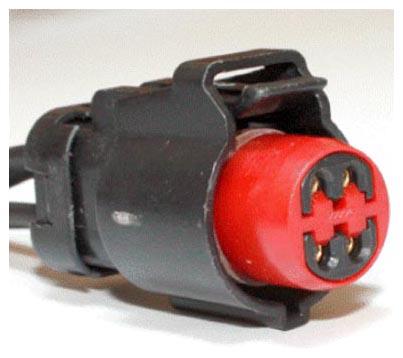

Pigtail Kit Part Number WPT-169	Service Part Number: 1U2Z-14S411-AEA  Gauge: 14  Pin material: Tin  Cavities: 4  Vehicle Uses Motor - Engine Cooling Fan Pump - Vacuum Sensor - Barometric Pressure Sensor - Fuel Tank Pressure Transducer Sensor - Power Steering Pressure Sensor - Purge Flow Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure Switch - A/C Pressure Cut Off Switch - Power Steering Pressure Switch - Refrigerant Containment
