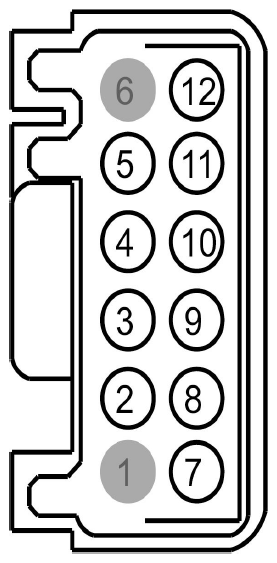

| 1 |
* |
* |
Not Used |
|
| 2 |
A-CPS23 (GN-VT) |
18 |
SWITCH - SEAT ADJUST. DRIVER FORWARD |
|
| 3 |
A-CPS27 (BU-BN) |
18 |
SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP |
|
| 4 |
A-CPS28 (GN) |
18 |
SWITCH - SEAT ADJUST. DRIVER REARWARD |
|
| 5 |
A-CPS26 (YE-BU) |
18 |
SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
GD904 (BK-BU) |
14 |
GROUND - DRIVER SEAT # SEAT SWITCH |
|
| 8 |
A-CPS30 (VT-BN) |
18 |
SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD |
|
| 9 |
A-CPS29 (WH-BN) |
18 |
SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD |
|
| 10 |
A-CPS24 (GY) |
18 |
SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN |
|
| 11 |
A-CPS25 (WH-VT) |
18 |
SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP |
|
| 12 |
CBX04 (WH-RD) |
18 |
POWER - SEAT # MEMORY MODULE HIGH CURRENT |
|
