Main Control Cover: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Remove the ACL assembly. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. G08615047
  4. Drain the fluid.
    • Tighten to 12 Nm (106 lb-in).
      G08030924

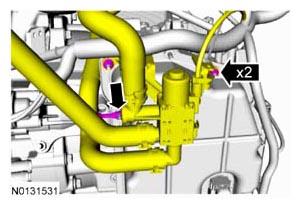

  5. G08661453
  6. G08030997
  7. G08614321
  8. NOTE: Note the location of the studbolts for assembly.

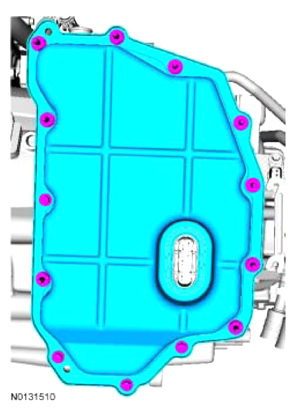

    G08031000
