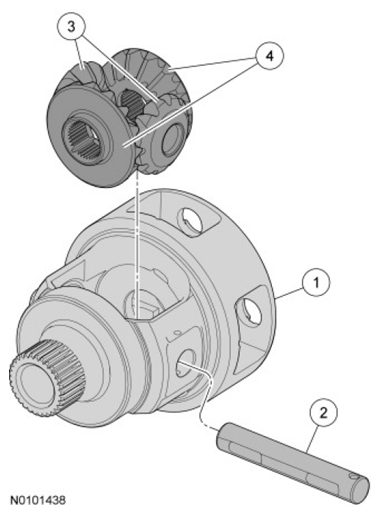

Differential Exploded View

WARNING: This page is about a different variant/trim than selected.

G07443647

Item	Part Number	Description
1	7F465	Differential housing
2	-	Pinion shaft
3	-	Pinion gears
4	-	Side gears
