Taurus SHO
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Audio System/Navigation
>>
Notes
Audio System/Navigation: Notes

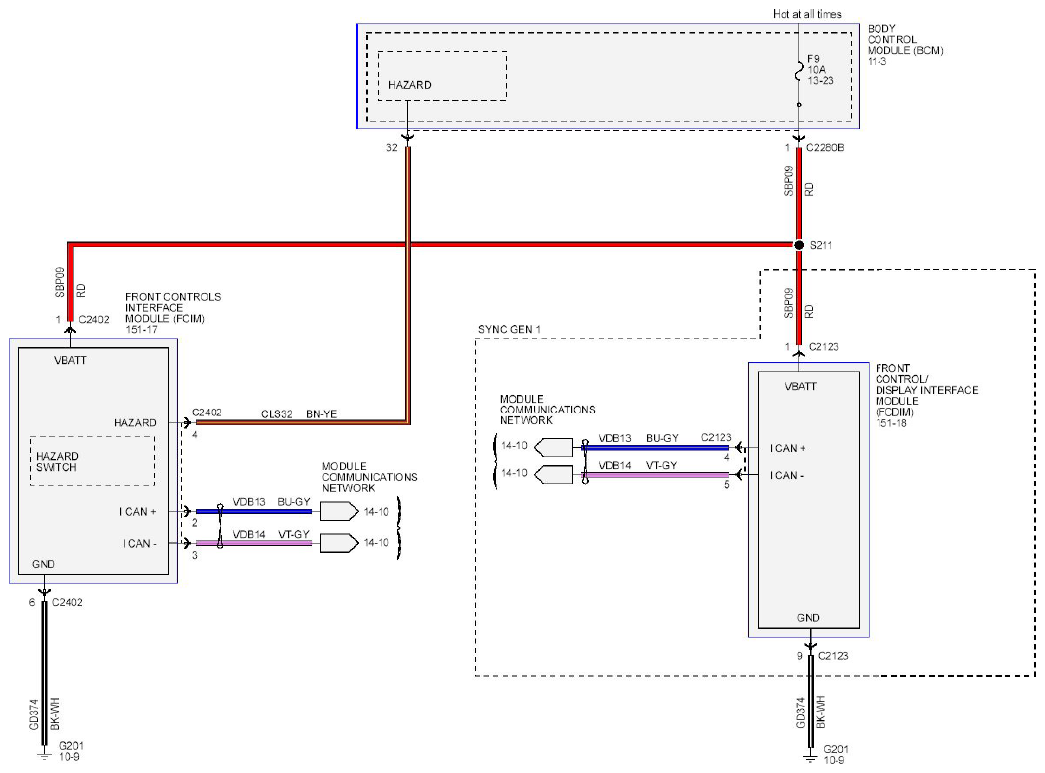

Fig 1: Audio System/Navigation - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

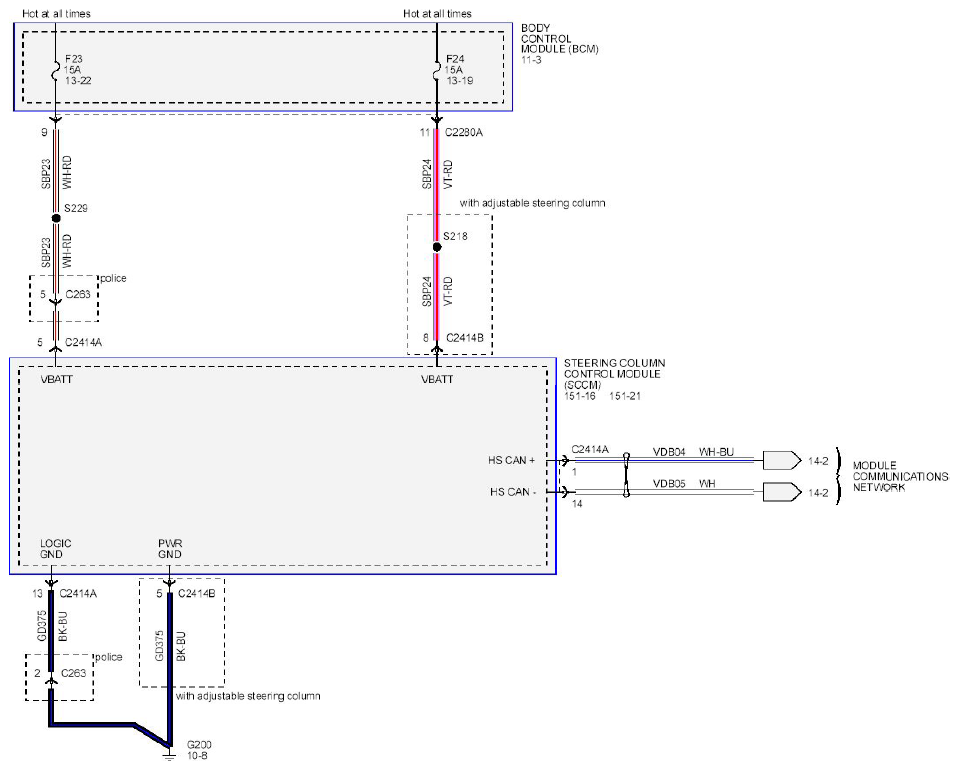

Fig 2: Audio System/Navigation - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
