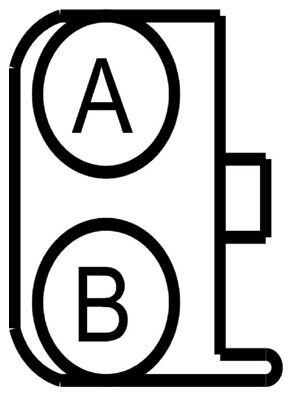

SUNLOAD Sensor Connector End View (C286)

Fig 1: Identifying Sunload Sensor Connector (C286)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
A	VLF14 (BU-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT
B	GD116 (BK-VT)	22	GROUND - CROSS CAR BEAM # 3RD STUD

Available Pigtail Kits

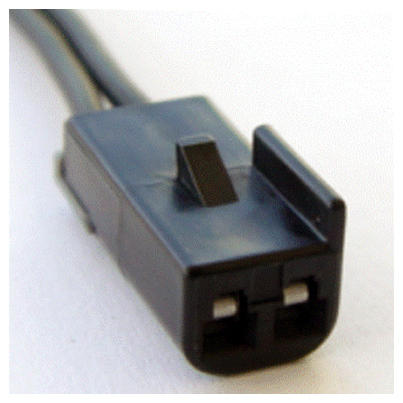

Pigtail Kit Part Number WPT-233	Service Part Number: 3U2Z-14S411-CZA  Gauge: 18  Pin material: Tin  Cavities: 2  Vehicle Uses Module - Auto Lamps Sensor - EATC In Car Temperature Sensor - Sunload Switch - Overdrive Cancel

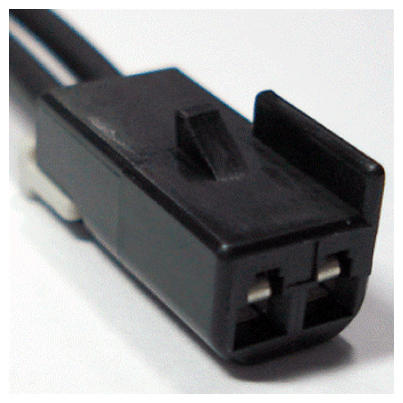

Pigtail Kit Part Number WPT-967	Service Part Number: 3U2Z-14S411-CZB  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Module - Auto Lamps Sensor - EATC In Car Temperature Sensor - Sunload Switch - Overdrive Cancel
