In-Vehicle Temperature Sensor Connector End View (C233)

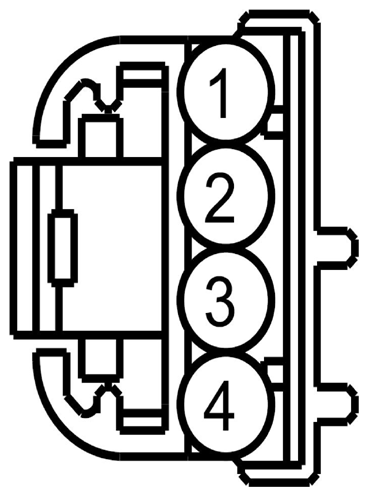

Fig 1: Identifying In-Vehicle Temperature Sensor Connector (C233)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VH414 (GN)	26	SENSOR - INCAR TEMP.
2	GD114 (BK-BU)	20	GROUND - CROSS CAR BEAM
3	CBP30 (YE-BU)	22	FUSE - 30 OR CIRCUIT BREAKER
4	RH111 (GY-BU)	22	CTRL MOD. - GENERIC VREF RETURN

Available Pigtail Kits

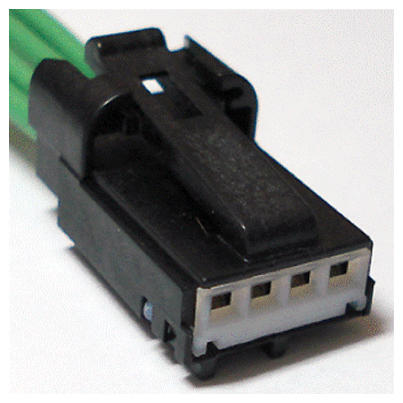

Pigtail Kit Part Number WPT-874	Service Part Number: 6U2Z-14S411-JA  Gauge: 18  Pin material: Tin  Cavities: 4  Vehicle Uses Relay - Oil Level Sensor - Compass Sensor - Turbine Shaft Speed Sensor - Turbo Intake Pressure/Temperature

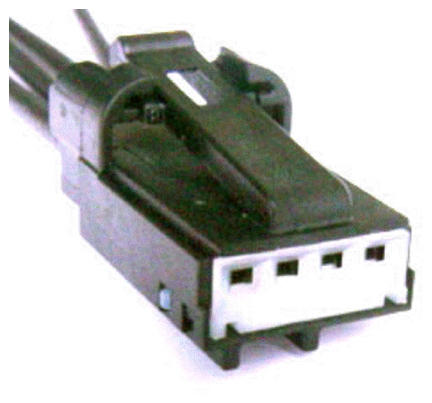

Pigtail Kit Part Number WPT-982	Service Part Number: 6U2Z-14S411-JB  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Module - Auto Lamps Module - Front Interface Sensor - EATC In Car Temperature Sensor - Sunload Solenoid - Brake Shift Park Interlock Switch - Door Lock (LH) Switch - Door Lock (RH)
