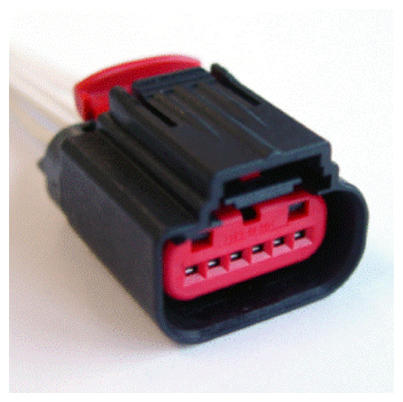

Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor

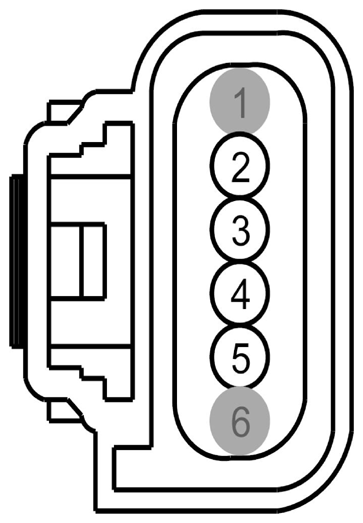

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | VE740 (VT-GY) | 20 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | |
| 3 | CBB48 (GY-YE) | 20 | FUSE - 48 OR CIRCUIT BREAKER | |
| 4 | RE320 (BU) | 20 | CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (SIGRTN) | |
| 5 | VE807A (YE-VT) | 20 | SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) | |
| 6 | * | * | Not Used |
| Available Pigtail Kits | |

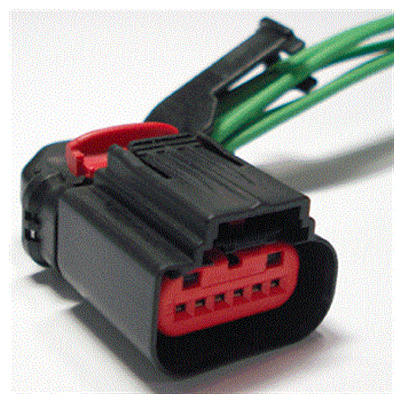

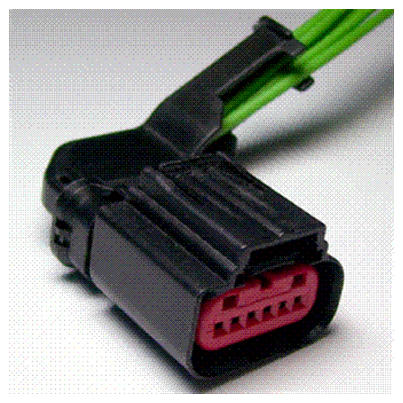

| Pigtail Kit Part Number WPT-795 | Service Part Number: 3U2Z-14S411-FJAA Gauge: 18 Pin material: Gold Cavities: 6 Vehicle Uses
|
| Pigtail Kit Part Number WPT-1023 | Service Part Number: 3U2Z-14S411-FJAB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses
|
| Pigtail Kit Part Number WPT-1241 | Service Part Number: 3U2Z-14S411-FJAC Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses
|
