Transmission Case: Notes
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS
| Handle 205-D055 (D81L-4000-A) |
|
| Installer, Bearing Cup 204-080 (T83P-1104-AH1) |
|
| Installer, Rear Axle Oil Seal 205-155 (T80T-4000-Y) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |
| Thread Sealant with PTFE TA-24 |
WSK-M2G350-A2 |

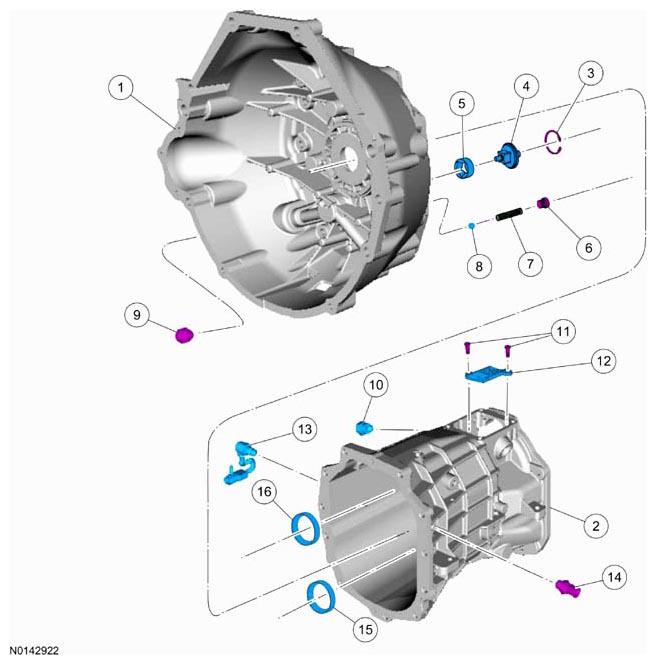

| Item | Part Number | Description |
|---|---|---|
| 1 | 6392 | Clutch housing |
| 2 | 7005 | Transmission main case |
| 3 | - | Snap ring |
| 4 | - | Oil pump drive gear |
| 5 | - | Oil pump gear |
| 6 | - | Plug |
| 7 | - | Spring |
| 8 | - | Check ball |
| 9 | - | Cooler line fitting |
| 10 | 7234B | Shift detent |
| 11 | - | Shift guide plate bolt (2 required) |
| 12 | 7F476 | Shift guide plate |
| 13 | 15520 | Reverse lamp switch |
| 14 | - | Cooler line fitting |
| 8 | 7025 | Countershaft bearing cup |
| 7 | 7025 | Output shaft bearing cup |
