Components and Components Location: Components
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

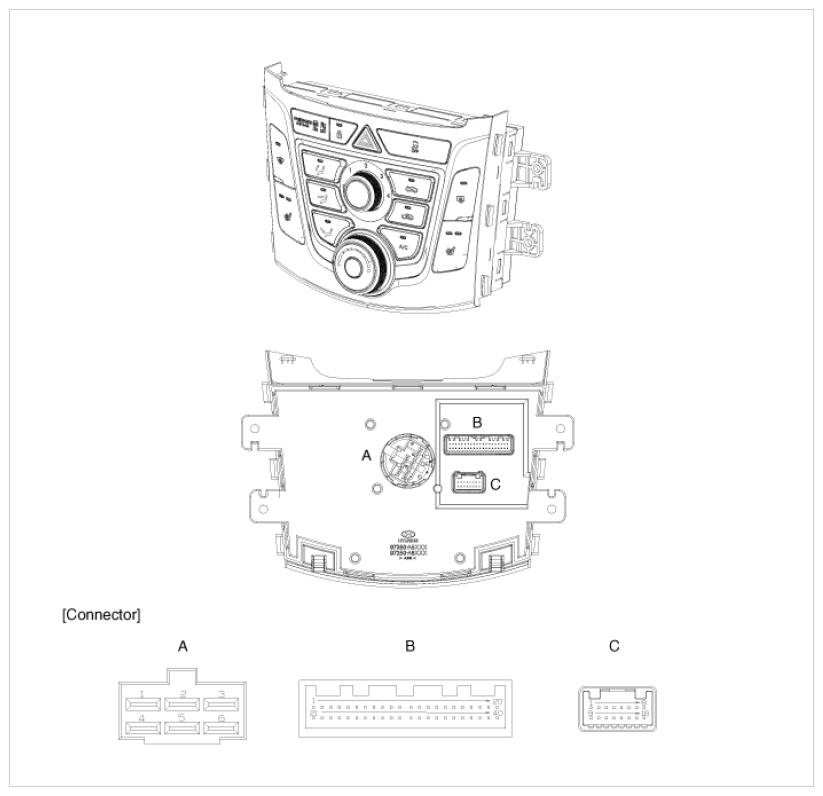

CONNECTOR PIN REFERENCE
| Connector | Pin No | Function |
|---|---|---|
| A | 1 | Ground |
| 2 | Low | |
| 3 | - | |
| 4 | Middle Low | |
| 5 | Middle High | |
| 6 | High | |
| B | 1 | Battery (+) |
| 2 | Tail Lamp (+) | |
| 3 | Sensor REF (+5V) | |
| 4 | Mode Actuator Feedback | |
| 5 | Temperature Actuator Feedback | |
| 6 | Intake Actuator Feedback | |
| 7 | Evaporator Temperature Sensor (+) | |
| 8 | Ambient Temperature Sensor (+) | |
| 9 | - | |
| 10 | Blower ON Signal | |
| 11 | HTD (Rear Defrost Indicator) | |
| 12 | Mode Actuator (Vent) | |
| 13 | Mode Actuator (Defog) | |
| 14 | Temperature Actuator (Cool) | |
| 15 | Temperature Actuator (Warm) | |
| 16 | Intake Actuator (Fresh) | |
| 17 | Intake Actuator (Recirculation) | |
| 18 | Hazard Switch | |
| 19 | Active ECO Signal | |
| 20 | Rheostat (ILL-) | |
| 21 | IGN 2 | |
| 22 | IGN 1 | |
| 23 | PAB IGN 1 | |
| 24 | Seat Heater Indicator - Low (Right) | |
| 25 | Seat Heater Indicator - High (Right) | |
| 26 | Rear Defrost Switch | |
| 27 | PTC Relay 2 | |
| 28 | - | |
| 29 | Detent Out (+) | |
| 30 | Seat Heater Indicator - Low (Left) | |
| 31 | Seat Heater Indicator - High (Left) | |
| 32 | C-CAN (High) | |
| 33 | C-CAN (Low) | |
| 34 | - | |
| 35 | - | |
| 36 | - | |
| 37 | - | |
| 38 | Sensor Ground | |
| 39 | Ground | |
| 40 | Ground | |
| C | 1 | ESC Switch OFF Signal |
| 2 | PAB OFF Signal | |
| 3 | PAB ON Signal | |
| 4 | - | |
| 5 | - | |
| 6 | - | |
| 7 | - | |
| 8 | Max. Blower ON Signal | |
| 9 | - | |
| 10 | - | |
| 11 | - | |
| 12 | Seat Heater Switch (Left) | |
| 13 | Seat Heater Switch (Right) | |
| 14 | - | |
| 15 | - | |
| 16 | Ground |
