Components and Components Location: Components
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

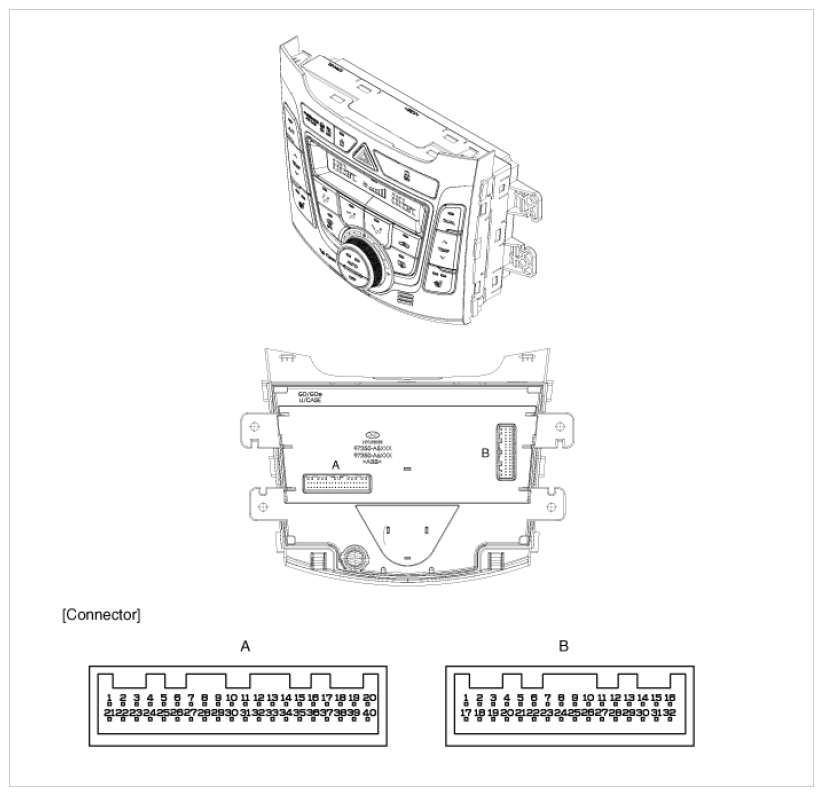

CONNECTOR PIN REFERENCE
| Connector | Pin No | Function |
|---|---|---|
| A | 1 | Tail Lamp (+) |
| 2 | Sensor REF (+5V) | |
| 3 | C-CAN (High) | |
| 4 | C-CAN (Low) | |
| 5 | Mode Actuator (Vent) | |
| 6 | Mode Actuator (Defog) | |
| 7 | Mode Actuator Feedback | |
| 8 | Intake Actuator (Fresh) | |
| 9 | Intake Actuator (Recirculation) | |
| 10 | Intake Actuator Feedback | |
| 11 | K-Line | |
| 12 | HTD (Rear Defrost Indicator) | |
| 13 | Rear Defrost Switch | |
| 14 | Temperature Actuator (Cool) - Driver | |
| 15 | Temperature Actuator (Warm) - Driver | |
| 16 | Temperature Actuator Feedback - Driver | |
| 17 | - | |
| 18 | - | |
| 19 | - | |
| 20 | Rheostat (ILL-) | |
| 21 | Detent Out (+) | |
| 22 | PAB IGN 1 | |
| 23 | Seat heater Switch (Left) | |
| 24 | Seat heater Switch (Right) | |
| 25 | Seat Heater Indicator - Low (Left) | |
| 26 | Seat Heater Indicator - Low (Right) | |
| 27 | Ambient Temperature Sensor (+) | |
| 28 | Evaporator Temperature Sensor (+) | |
| 29 | Humidity (PWM) | |
| 30 | Photo Sensor (-) - Left | |
| 31 | PAB OFF Signal | |
| 32 | Photo Sensor (-) - Right | |
| 33 | ECV + | |
| 34 | ECV - (Ground) | |
| 35 | FET (Gate) | |
| 36 | Seat Heater Indicator - High (Left) | |
| 37 | - | |
| 38 | PTC Relay | |
| 39 | - | |
| 40 | Seat Heater Indicator - High (Right) |
| Connector | Pin No | Function |
|---|---|---|
| B | 1 | Ground |
| 2 | Sensor Ground | |
| 3 | FET (Drain Feedback) | |
| 4 | Ionizer Diagnosis | |
| 5 | Clean Signal | |
| 6 | Ion Signal | |
| 7 | - | |
| 8 | - | |
| 9 | - | |
| 10 | - | |
| 11 | PAB ON Signal | |
| 12 | Active ECO Signal | |
| 13 | - | |
| 14 | - | |
| 15 | - | |
| 16 | IGN 2 | |
| 17 | Ground | |
| 18 | Hazard Signal | |
| 19 | Temperature Actuator (Cool) - Passenger | |
| 20 | Temperature Actuator (Warm) - Passenger | |
| 21 | Temperature Actuator Feedback | |
| 22 | - | |
| 23 | - | |
| 24 | Blower Motor (+) | |
| 25 | - | |
| 26 | - | |
| 27 | - | |
| 28 | - | |
| 29 | - | |
| 30 | - | |
| 31 | Battery | |
| 32 | IGN 1 |
