ASP Calibration Procedures

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect self-diagnosis connector (16pins) located in the lower of driver side crash pad to self-diagnosis device.
  2. Turn the self-diagnosis device after key is ON.
  3. Turn the steering wheel to straight ahead position.
  4. After Selecting the "vehicle model" and "system", select the "ASP Calibration" on GDS vehicle selection screen.

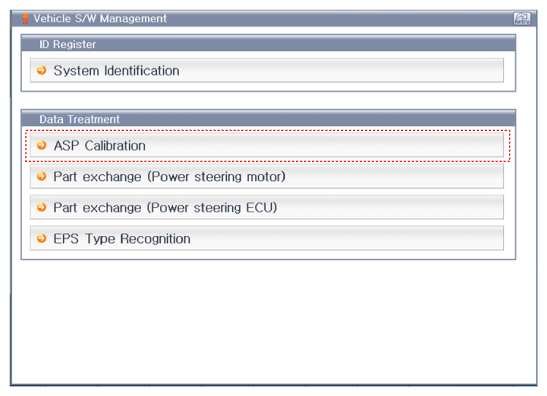

    Fig 1: Screen Display - ASP Calibration On GDS (1 Of 2)
    G12026431Courtesy of HYUNDAI MOTOR AMERICA

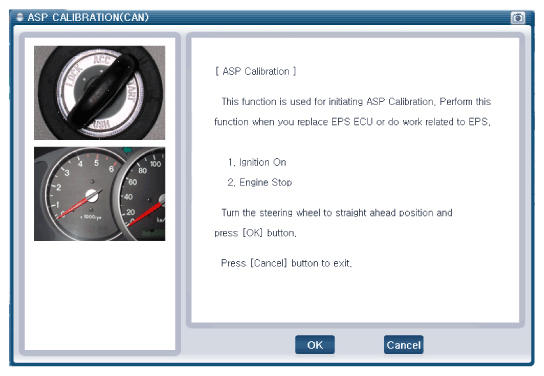

    Fig 2: Screen Display - ASP Calibration On GDS (2 Of 2)
    G12026432Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the DTC.
  6. Turn off the IG switch and wait for 10 seconds or more before starting the engine. And then make sure that MDPS works properly.
