Front Brake Disc Shield: Removal

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake disc. Refer to: Brake Disc .

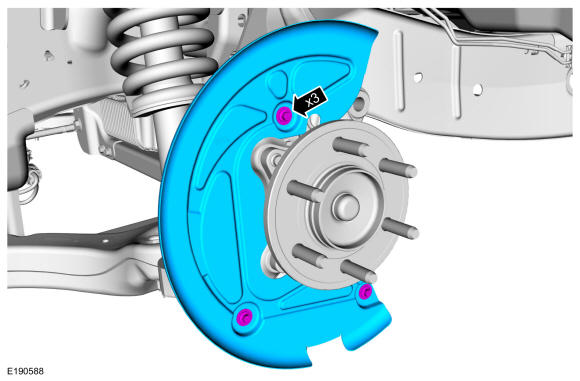

  2. Remove the 3 bolts and the brake disc shield.

    Torque: 155 lb.in (17.5 Nm)

GFD173986Courtesy of FORD MOTOR COMPANY
