Stability Assist/Traction Control Switch: Removal

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) - Vehicles Without: SYNC . Refer to: Front Controls Interface Module (FCIM) - Vehicles With: SYNC Without Touchscreen . Refer to: Front Controls Interface Module (FCIM) - Vehicles With: Touchscreen Display . Refer to: Front Controls Interface Module (FCIM) - Vehicles With: Sony Audio System .

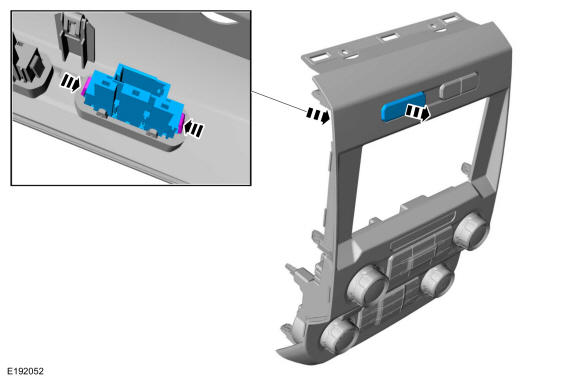

  2. Press the 2 tabs and remove the stability assist/traction control switch.
GFD174124Courtesy of FORD MOTOR COMPANY
