Cruise Control Module (CCM): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Remove the front bumper cover.

    Refer to: FRONT BUMPER COVER .

  3. Remove the active grille shutters.

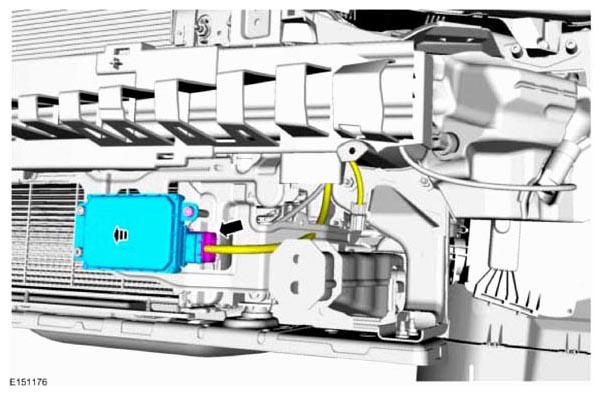

  4. G08637804
  5. Torque  : 27 Nm

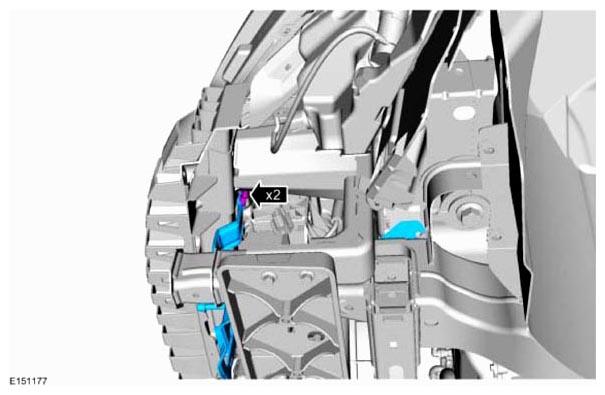

    G08637805
  6. Torque  : 9 Nm

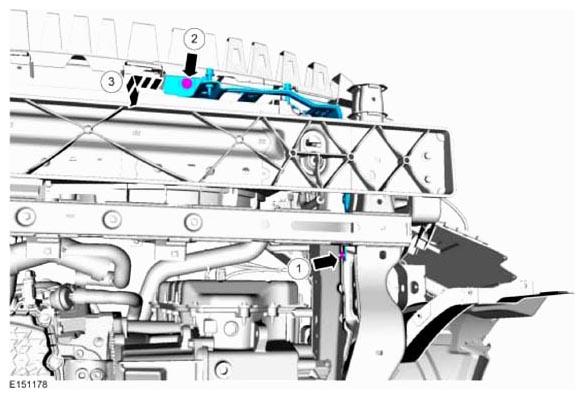

    G08637806
