Seat Control Switch, Driver Side Front Connector End View (C369)

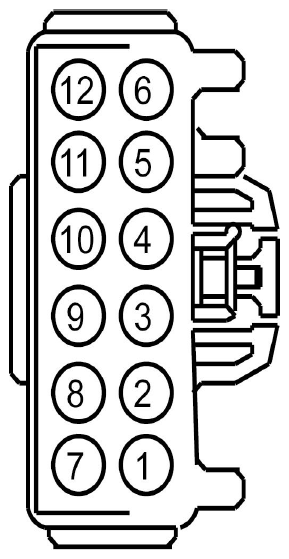

Fig 1: Identifying Seat Control Switch, Driver Side Front Connector (C369)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS27 (BU-BN)	18	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	with memory
1	CPS27 (BU-BN)	16	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	w/o memory
2	CPS25 (WH-VT)	18	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP	with memory
2	CPS25 (WH-VT)	16	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP	w/o memory
3	GD904 (BK-BU)	14	GROUND - DRIVER SEAT # SEAT SWITCH
4	CPS23 (GN-VT)	18	SWITCH - SEAT ADJUST. DRIVER FORWARD	with memory
4	CPS23 (GN-VT)	16	SWITCH - SEAT ADJUST. DRIVER FORWARD	w/o memory
5	CBX04 (WH-RD)	18	POWER - SEAT # MEMORY MODULE HIGH CURRENT	with memory
5	CBX05 (VT-RD)	14	POWER - SEAT # POWER SEAT SWITCH	w/o memory
6	CPS24 (GY)	18	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN	with memory
6	CPS24 (GY)	16	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN	w/o memory
7	CPS19 (GY-VT)	20	SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE
8	CPS30 (VT-BN)	18	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD	with memory
8	CPS30 (VT-BN)	16	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD	w/o memory
9	CPS28 (GN)	18	SWITCH - SEAT ADJUST. DRIVER REARWARD	with memory
9	CPS28 (GN)	16	SWITCH - SEAT ADJUST. DRIVER REARWARD	w/o memory
10	CPS18 (BN-GN)	20	SWITCH - DRIVER LUMBAR PUMP
11	CPS29 (WH-BN)	18	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD	with memory
11	CPS29 (WH-BN)	16	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD	w/o memory
12	CPS26 (YE-BU)	18	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN	with memory
12	CPS26 (YE-BU)	16	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN	w/o memory

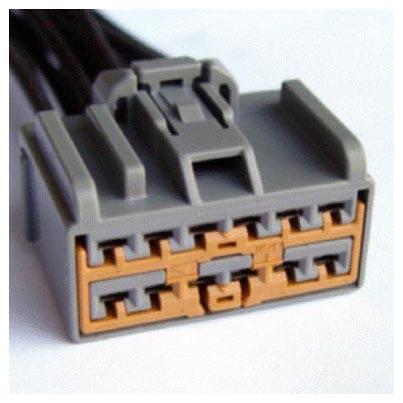

Available Pigtail Kits
Pigtail Kit Part Number WPT-396	Service Part Number: 3U2Z-14S411-BKA  Gauge: 12  Pin material: Tin  Cavities: 12  Vehicle Uses Module - Liftgate Switch - Headlamp Switch - Seat (driver) Switch - Seat (passenger)
