Safety Canopy Module, RH Connector End View (C4404)

Fig 1: Identifying Safety Canopy Module, RH Connector (C4404)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RR111 (YE-VT)	18	CTRL MOD. - INFLATABLE CURTAIN RH SIDE -
2	CR111 (BN-WH)	18	CTRL MOD. - INFLATABLE CURTAIN RH SIDE +

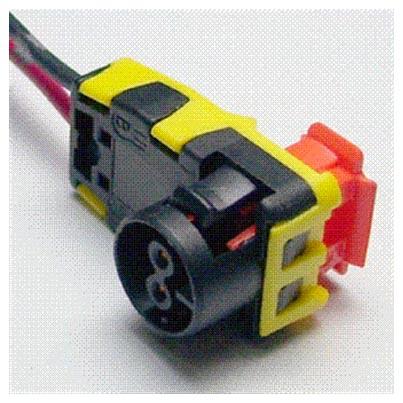

Available Pigtail Kits
Pigtail Kit Part Number WPT-1225	Service Part Number: BU2Z-14S411-BHA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger)
