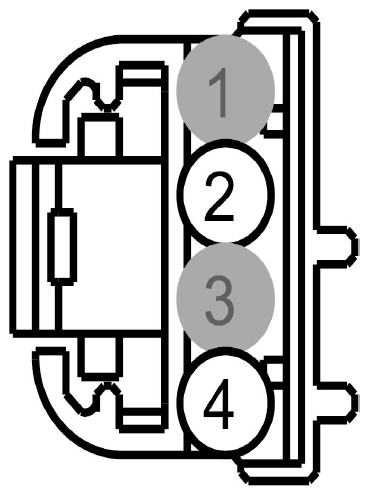

SUNLOAD Sensor Connector End View (C287)

Fig 1: Identifying Sunload Sensor Connector (C287)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	VLF14 (BU-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +
3	*	*	Not Used
4	GD374 (BK-WH)	20	GROUND - TUNNEL (BC3T)

Available Pigtail Kits

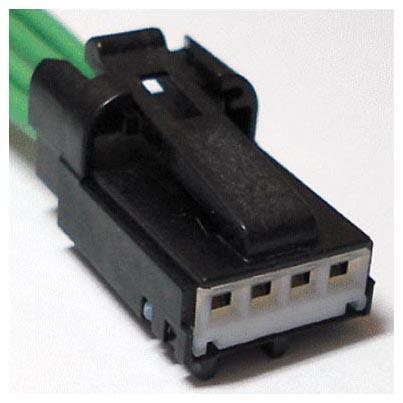

Pigtail Kit Part Number WPT-874	Service Part Number: 6U2Z-14S411-JA  Gauge: 18  Pin material: Tin  Cavities: 4  Vehicle Uses Relay - Oil Level Sensor - Compass Sensor - Turbine Shaft Speed Sensor - Turbo Intake Pressure/Temperature

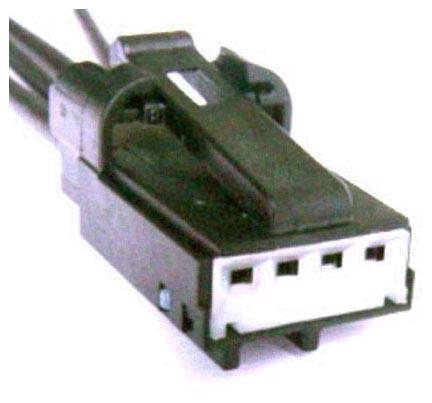

Pigtail Kit Part Number WPT-982	Service Part Number: 6U2Z-14S411-JB  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Module - Auto Lamps Module - Front Interface Sensor - EATC In Car Temperature Sensor - Sunload Solenoid - Brake Shift Park Interlock Switch - Door Lock (LH) Switch - Door Lock (RH)
