Power Liftgate Open/Close Switch, Front Connector End View (C2269)

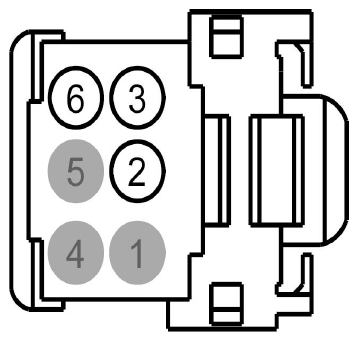

Fig 1: Identifying Power Liftgate Open/Close Switch, Front Connector (C2269)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	GD375 (BK-BU)	22	GROUND - TUNNEL # 2ND POINT (BC3T)
3	VLN04 (VTGY)	20	CTRL MOD. - IP/SWITCH ILLUMINATION
4	*	*	Not Used
5	*	*	Not Used
6	CPR63 (GY)	26	SWITCH - POWER LIFTGATE # OPEN/CLOSE
