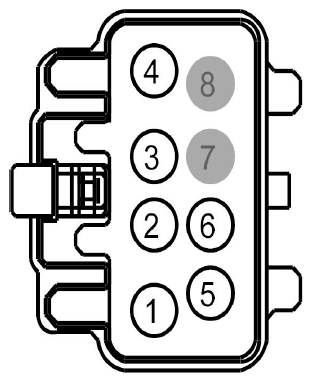

Liftgate Driver Motor Assembly Connector End View (C4332)

Fig 1: Identifying Liftgate Driver Motor Assembly Connector (C4332)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPR57 (GN-WH)	12	CTRL MOD. - POWER LIFTGATE # OPEN
2	CPR55 (GN)	26	CTRL MOD. - POWER LIFTGATE # SENSOR POWER
3	RPR55 (WH)	26	CTRL MOD. - POWER LIFTGATE # SENSOR RETURN
4	CPR58 (GN-OG)	12	CTRL MOD. - POWER LIFTGATE # CLOSE
5	VPR53 (BU)	26	SENSOR - POWER LIFTGATE # OPTICAL/HALL 1
6	VPR54 (BN)	26	SENSOR - POWER LIFTGATE # OPTICAL/HALL 2
7	*	*	Not Used
8	*	*	Not Used
