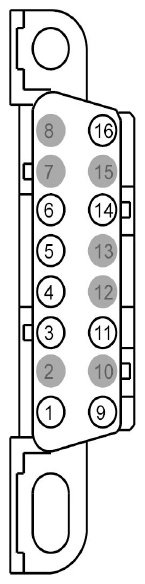

Data Link Connector Connector End View (C251)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VDB13 (BU-GY) | 20 | CTRL MOD. - MULTIMEDIA CAN BUS HIGH | |
| 2 | * | * | Not Used | |
| 3 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 4 | GD374 (BK-WH) | 20 | GROUND - TUNNEL (BC3T) | |
| 5 | GD374 (BK-WH) | 20 | GROUND - TUNNEL (BC3T) | |
| 6 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | VDB14 (VT-GY) | 20 | CTRL MOD. - MULTIMEDIA CAN BUS LOW | |
| 10 | * | * | Not Used | |
| 11 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 15 | * | * | Not Used | |
| 16 | SBP24 (VT-RD) | 20 | FUSE - 24 OR CIRCUIT BREAKER |

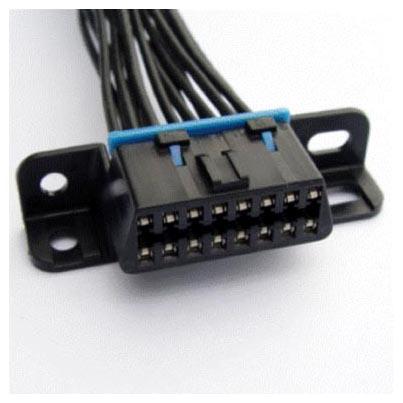

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-615 | Service Part Number: 3U2Z-14S411-LKA Gauge: 16 Pin material: Tin Cavities: 16 Vehicle Uses
|
