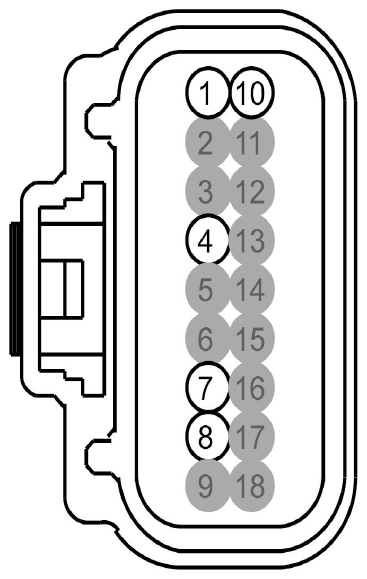

Cruise Control Module (C-Cm) Connector End View (C1582)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB79 (WH-RD) | 22 | FUSE - 79 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 8 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 9 | * | * | Not Used | |
| 10 | CBB91 (BN) | 22 | FUSE - 91 OR CIRCUIT BREAKER | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used |
