Remote Function Actuator (RFA) Module Connector End View (C3503E)

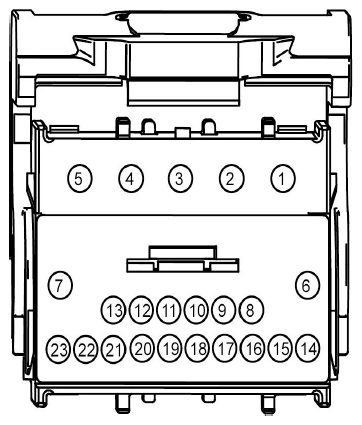

Fig 1: Identifying Remote Function Actuator (RFA) Module Connector (C3503E)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPK01 (WH-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER
2	RPK05 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT)
3	RPK02 (GY-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER
4	RPK08 (BN-VT)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER
5	RPK06 (BU-WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER)
6	*	*	Not Used
7	RPK07 (GN-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER)
8	VPK01 (BN-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER
9	VPK05 (BN-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT)
10	VPK02 (VT-WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER
11	VPK08 (WH-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	VPK07 (VT)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR
17	VPK06 (GY-VT)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER)
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
