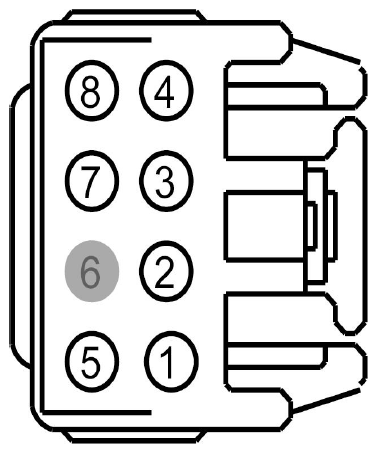

Master Window Control Switch Connector End View (C504A)

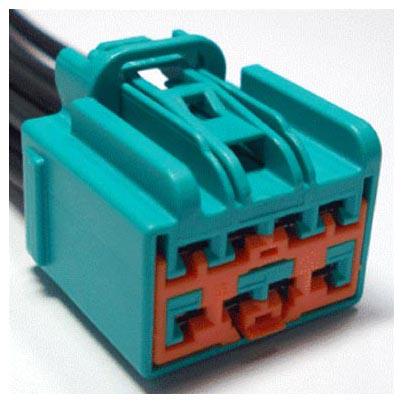

Fig 1: Identifying Master Window Control Switch Connector (C504A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW12 (GN-OG)	12	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN
2	GD143 (BK-VT)	12	GROUND - PILLAR B LEFT
3	CPW11 (BU-GY)	12	SWITCH - POWER WINDOW DRIVER # DRIVER UP
4	CPW13 (BN-YE)	12	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP
5	CPW10 (YE-VT)	12	SWITCH - POWER WINDOW DRIVER # DRIVER DOWN
6	*	*	Not Used
7	CBP34 (VT-BN)	12	FUSE - 34 OR CIRCUIT BREAKER
8	SBP16 (VT-RD)	22	FUSE - 16 OR CIRCUIT BREAKER

Available Pigtail Kits

Pigtail Kit Part Number WPT-1031

Service Part Number: 3U2Z-14S411-PPB  Gauge: 10 12  Pin material: Tin&Silver  Cavities: 8  Vehicle Uses Switch - Adjustable Pedal Switch - Convertable Top Switch - Door Lock (Cargo) Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Moon Roof/Sun Roof Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat Lumbar Switch - Third Row Power Folding Seat
