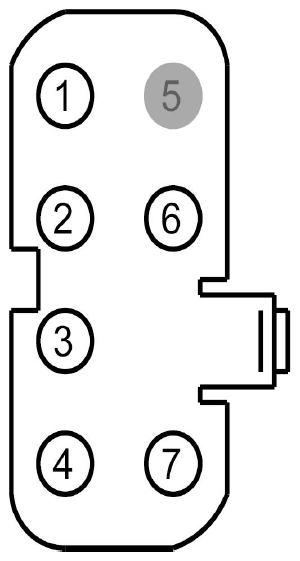

Window Control Switch, Passenger Side Connector End View (C604)

Fig 1: Identifying Window Control Switch, Passenger Side Connector (C604)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW20 (WH-OG)	12	SWITCH - POWER WINDOW FRONT PASSENGER # UP
2	CBP34 (VT-BN)	12	FUSE - 34 OR CIRCUIT BREAKER
3	CPW12 (GN-OG)	12	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN
4	GD145 (BK-BU)	20	GROUND - PILLAR B RIGHT
5	*	*	Not Used
6	CPW13 (BN-YE)	12	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP
7	CPW19 (VT)	12	SWITCH - POWER WINDOW FRONT PASSENGER # DOWN

Available Pigtail Kits

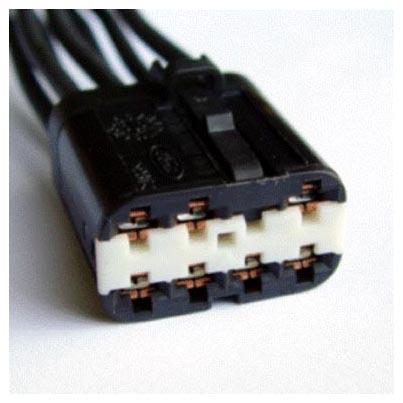

Pigtail Kit Part Number WPT-1267	Service Part Number: 3U2Z-14S411-PKB  Gauge: 14  Pin material: Tin (greased)  Cavities: 7  Vehicle Uses Switch - Adjustable Pedal Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Heated Back Light (Rear Defrost) Switch - Power Sliding Rear Window Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat (driver) Switch - Traction Control

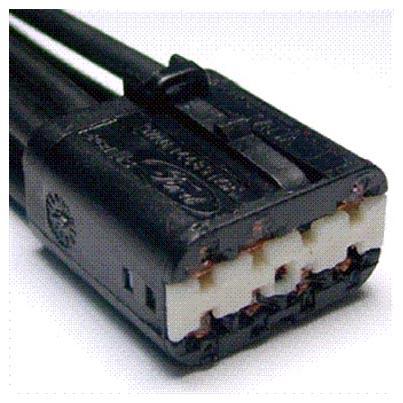

Pigtail Kit Part Number WPT-578	Service Part Number: 3U2Z-14S411-PKA  Gauge: 14  Pin material: Tin  Cavities: 7  Vehicle Uses Switch - Adjustable Pedal Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Heated Back Light (Rear Defrost) Switch - Power Window - Passenger (Front)
