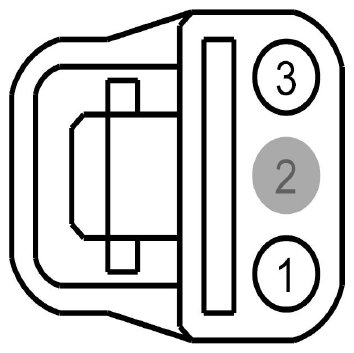

Side Air Bag Module, Driver Connector End View (C367)

Fig 1: Identifying Side Air Bag Module, Driver Connector (C367)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RR105 (GY-YE)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE
2	*	*	Not Used
3	CR105 (GN-BU)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE
