Front Controls/Display Interface Module (FCDIM): Notes

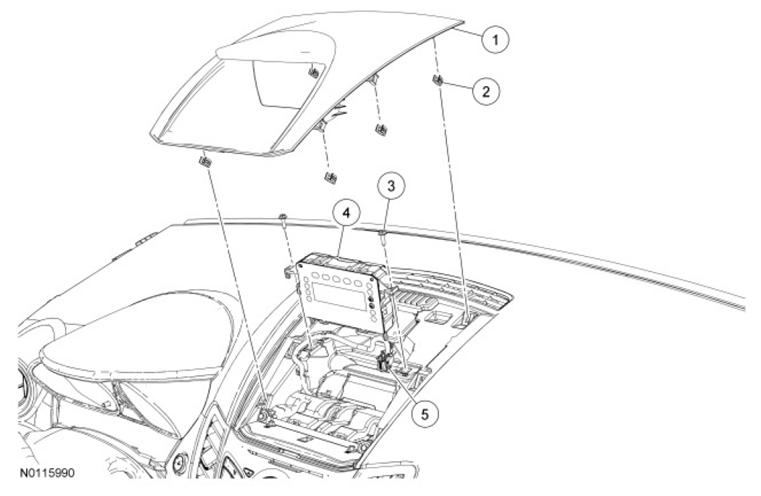

Fig 1: Identifying Front Controls/Display Interface Module And Related Components
G06939811Courtesy of FORD MOTOR CO.
Item Part Number Description
1 042A82 Upper finish panel
2 W714972 Upper finish panel clips (6 required)
3 N806272 FCDIM screws (2 required)
4 10D885 FCDIM
5 - FCDIM electrical connector (part of 14K024)
