Transmission Control Module (TCM) Connector C1750A

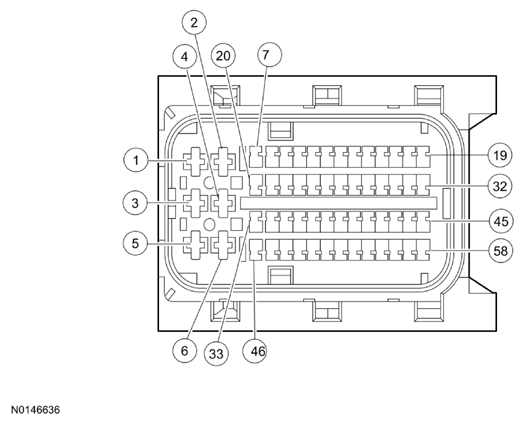

Fig 1: Transmission Control Module Connector C1750A Terminals
G08866789Courtesy of FORD MOTOR CO.
Item Description
1 Power
2 Power
3 Ground
4 Ground
5 Ground
6 Ground
11 Overdrive (O/D) Cancel
18 Power
31 Ignition Run Start
34 Can Bus High Speed High
35 Can Bus High Speed Low
39 P/N Switch/Clutch 2
40 REVERSE Lamp
49 Brake Shift Interlock Actuator (BSIA)
