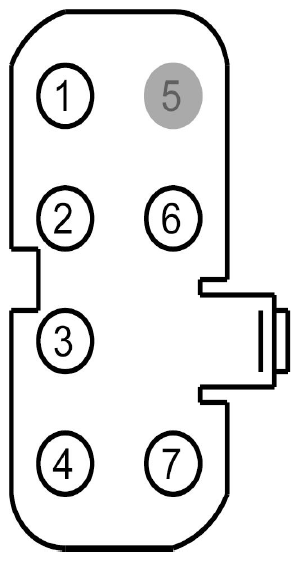

Window Control Switch, Right Rear Connector End View (C801)

Fig 1: Identifying Window Control Switch, Right Rear Connector (C801)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW24 (WH-VT)	12	SWITCH - POWER WINDOW REAR RIGHT # UP
2	CPW01 (BN-BU)	12	CTRL MOD. - POWER WINDOW GLOBAL SET
3	CPW17 (BN-GN)	12	SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN
4	GD145 (BK-BU)	20	GROUND - PILLAR B RIGHT
5	*	*	Not Used
6	CPW18 (GY-VT)	12	SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP
7	CPW23 (GY)	12	SWITCH - POWER WINDOW REAR RIGHT # DOWN

Available Pigtail Kits

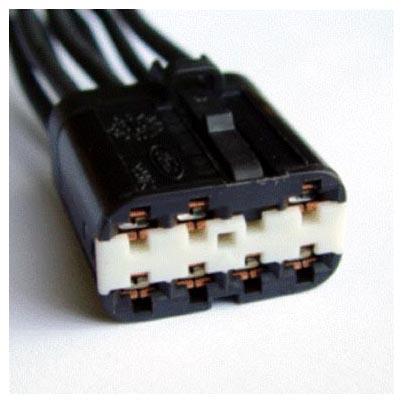

Pigtail Kit Part Number WPT-1267	Service Part Number: 3U2Z-14S411-PKB  Gauge: 14  Pin material: Tin (greased)  Cavities: 7  Vehicle Uses Switch - Adjustable Pedal Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Heated Back Light (Rear Defrost) Switch - Power Sliding Rear Window Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat (driver) Switch - Traction Control

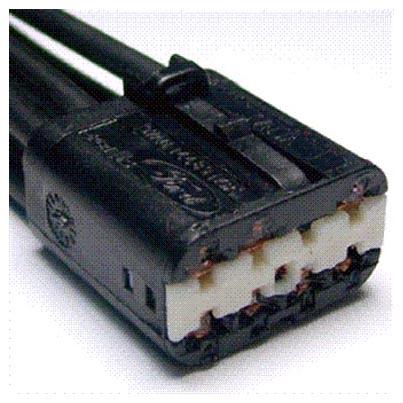

Pigtail Kit Part Number WPT-578	Service Part Number: 3U2Z-14S411-PKA  Gauge: 14  Pin material: Tin  Cavities: 7  Vehicle Uses Switch - Adjustable Pedal Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Heated Back Light (Rear Defrost) Switch - Power Window - Passenger (Front)
