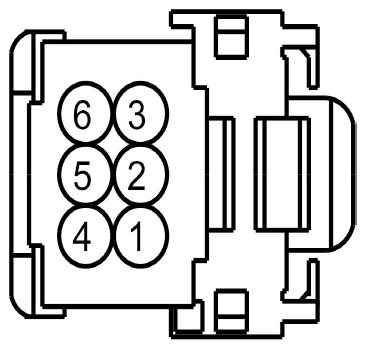

Start/Stop Switch Connector End View (C2195)

Fig 1: Identifying Start/Stop Switch Connector (C2195)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD115 (BK-GY)	20	GROUND - CROSS CAR BEAM # 2ND STUD
2	*	*	Not Used
3	CPK34 (BN-VT)	20	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1
4	CPK35 (YE-OG)	20	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2
5	*	*	Not Used
6	CLN04 (BU-BN)	22	CTRL MOD. - IP/SWITCH ILLUMINATION

Available Pigtail Kits

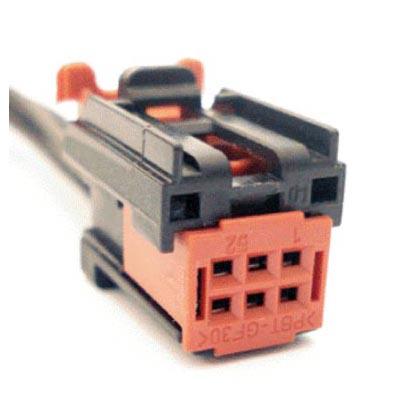

Pigtail Kit Part Number WPT-872	Service Part Number: 6U2Z-14S411-HA  Gauge: 20  Pin material: Tin  Cavities: 6  Vehicle Uses Solenoid - Canister Vent Speaker - Tweeter - RH - Rear

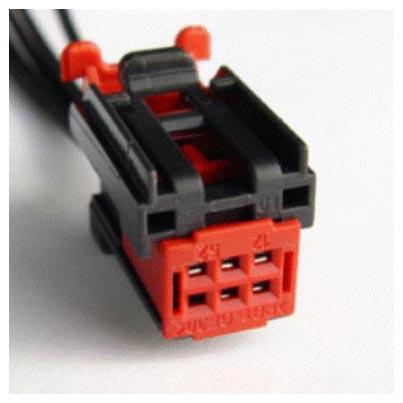

Pigtail Kit Part Number WPT-481	Service Part Number: 3U2Z-14S411-PNA  Gauge: 22  Pin material: Tin  Cavities: 6  Vehicle Uses Switch - Hazard Warning

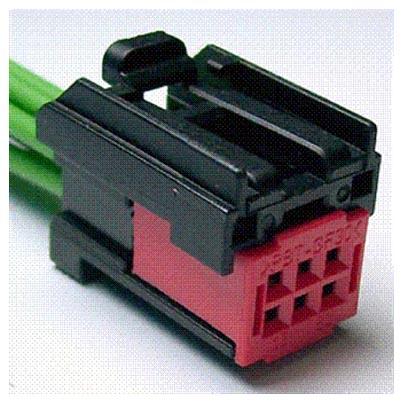

Pigtail Kit Part Number WPT-1237	Service Part Number: 3U2Z-14S411-PNB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Switch - Hazard Warning Switch - Message Center Switch - Start/Stop
