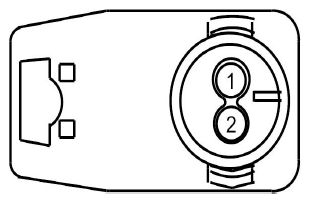

Side Air Curtain Module, Driver Connector End View (C9018)

Fig 1: Identifying Side Air Curtain Module, Driver Connector (C9018)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR109 (BN-BU)	18	CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE
2	RR109 (BU-GN)	18	CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE

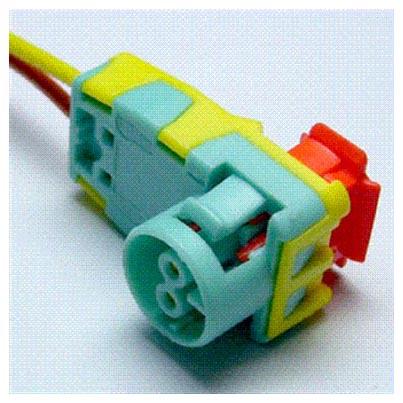

Available Pigtail Kits
Pigtail Kit Part Number WPT-1226	Service Part Number: BU2Z-14S411-BJA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Squib - Airbag (Passenger)
