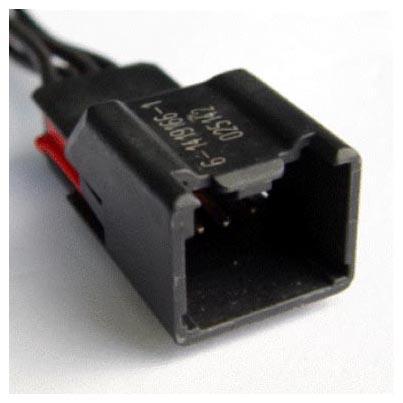

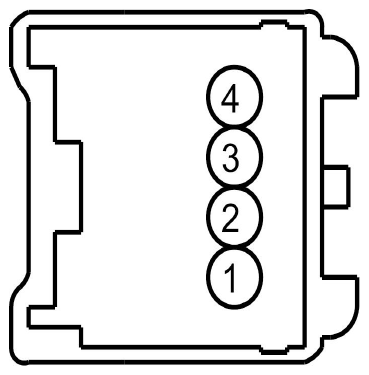

Liftgate/DECKLID Release Switch/Lamp Assembly Connector End View (C4224)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CLS08 (VT-GN) | 20 | CTRL MOD. - PARK REAR LEFT | |
| 2 | GD143 (BK-VT) | 22 | GROUND - PILLAR B LEFT | |
| 3 | CPL10 (GN-WH) | 22 | CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE | |
| 4 | GD143 (BK-VT) | 22 | GROUND - PILLAR B LEFT |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-394 | Service Part Number: 3U2Z-14S411-KNA Gauge: 18 Pin material: Tin Cavities: 4 Vehicle Uses
|
