Steering Column Motor - Telescopic: Notes

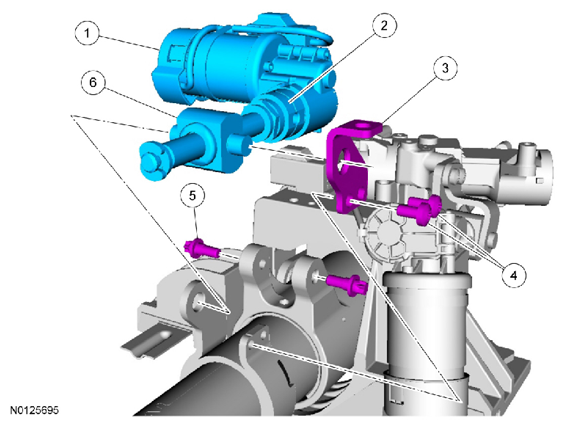

Fig 1: Identifying Steering Column Motor Components (Telescopic)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3F797	Steering column motor (telescopic)
2	-	Leadscrew housing (part of 3F797)
3	-	Trunion nut capture bracket (part of 3C529)
4	-	Trunion nut capture bracket screws (2 required) (part of 3C529)
5	-	Steering column motor screws (2 required) (part of 3C529)
6	-	Trunion nut (part of 3F797)
