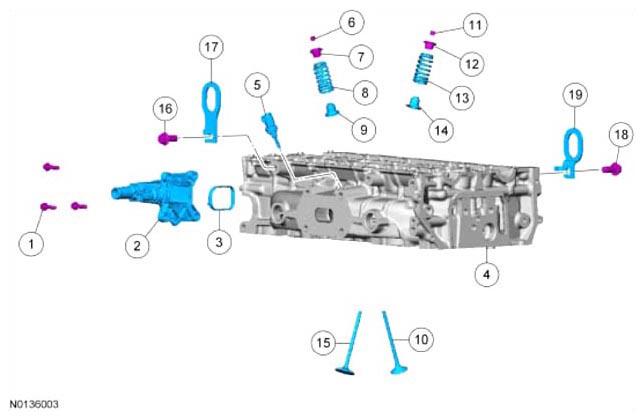

Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W500015 | Coolant outlet bolt (3 required) | 10 Nm (89 lb-in) | - | - |
| 2 | 8K556 | Coolant outlet | - | - | - |
| 3 | 8255 | Coolant outlet gasket | - | - | - |
| 4 | 6049 | Cylinder head | - | - | - |
| 5 | 6G004 | CHT sensor | 11 Nm (97 lb-in) | - | - |
| 6 | 6518 | Exhaust valve collet (16 required) | - | - | - |
| 7 | 6514 | Exhaust valve spring retainer (8 required) | - | - | - |
| 8 | 6513 | Exhaust valve spring (8 required) | - | - | - |
| 9 | 6A517 | Exhaust valve seal (8 required) | - | - | - |
| 10 | 6505 | Exhaust valve (8 required) | - | - | - |
| 11 | 6518 | Intake valve collet (16 required) | - | - | - |
| 12 | 6514 | Intake valve spring retainer (8 required) | - | - | - |
| 13 | 6513 | Intake valve spring (8 required) | - | - | - |
| 14 | 6A517 | Intake valve seal (8 required) | - | - | - |
| 15 | 6507 | Intake valve (8 required) | - | - | - |
| 16 | W500033 | Engine lift eye bolt | 47 Nm (35 lb-ft) | - | - |
| 17 | 17A084 | LH engine lift eye | - | - | - |
| 18 | W500033 | Engine lift eye bolt | 47 Nm (35 lb-ft) | - | - |
| 19 | 17K004 | RH engine lift eye | - | - | - |
